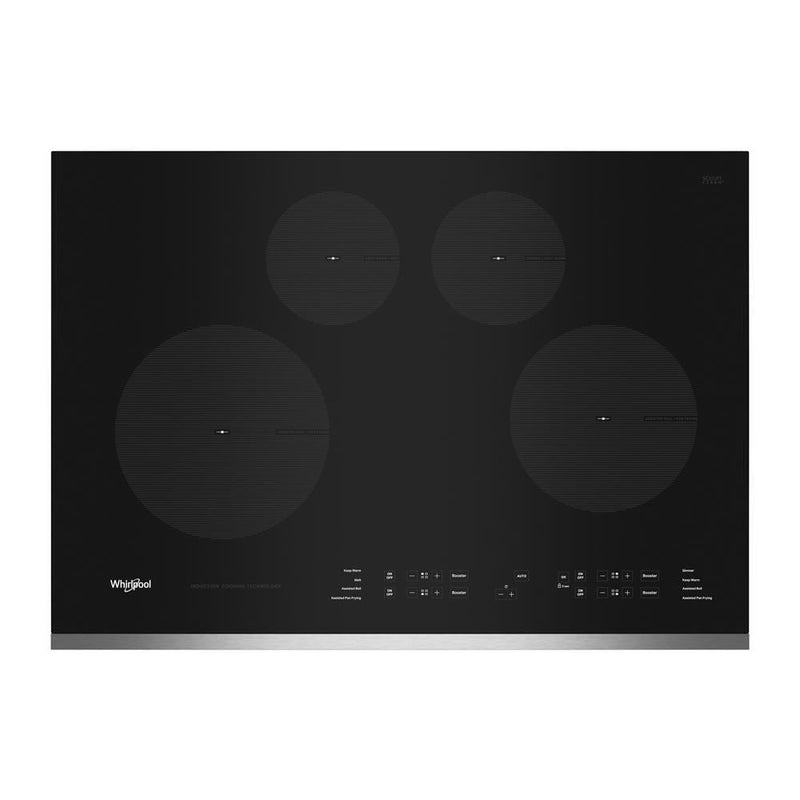

Whirlpool 30-in 4-Element Induction Cooktop with Stainless Steel Trim

Compare induction compatibility with assisted-function compatibility

Start by checking whether your ordinary cookware is suitable for induction. Then decide whether the optional assisted modes are part of your purchase. Whirlpool identifies a specific accessory pot for Assisted Boil and accessory pan for Assisted Pan Frying. A pan can be suitable for everyday induction cooking without being the dedicated piece required for an assisted mode.

Make two short lists so replacing ordinary cookware and obtaining optional assisted cookware are not confused in the budget.

Use low-heat functions for familiar tasks

Melt, Simmer and Keep Warm provide named options to compare with a small saucepan, soup pot or component waiting for the rest of dinner. Review the exact operating guidance and cookware placement before choosing a setting. Think about where each pan sits throughout the meal and which one needs frequent attention.

This can make a four-position layout practical when the tasks are organized around actual pan sizes instead of only the number of burners in a title.

Choose trim and installation style with the counter

JS identifies Stainless Steel Trim around the glass induction surface. Inspect that edge with the counter seams, backsplash and nearby appliance finishes. For an existing opening, have its size and condition reviewed before assuming the trim conceals it. Compare standard and approved flush arrangements with the installer early enough to affect fabrication. Match the preferred appearance with the exact cutout and clearance drawing.

Compare assisted modes with a realistic ingredient sequence

If Assisted Boil or Assisted Pan Frying is important, identify a meal where you would use the required dedicated cookware. Think about what you will do when the model gives its supported signal and where ingredients wait beforehand. Keep the other cooking tasks on the sketch so the assisted step does not leave another pan unattended or block the touch controls.

Review the exact guide for the mode and appropriate use of the accessory. This comparison gives the optional cookware a specific job in the routine and makes it easier to decide whether that feature belongs in the purchase.

Check the exact body and cutout

Whirlpool publishes overall dimensions of 30.8125 inches wide, 3.6875 inches high and 21.25 inches deep. Use the actual installation drawing for the counter opening, standard or flush arrangement and cabinet clearances. If the existing cooktop belongs to the same nominal size class, measure its opening before assuming the replacement drops into place. Include the trim and surrounding counter surface in the drawing.

Have the circuit reviewed for this exact model

Whirlpool's product page identifies a 30 A installation. Give the installer the unit's rating label and complete guide so the electrical connection is checked as a whole. Do not infer voltage, wiring or cutout suitability from another Whirlpool cooktop. Locate the junction box and the underside space before assigning storage to the cabinet below.

Review an oven-below arrangement using both models

Whirlpool describes installation above a Whirlpool wall oven. The exact oven and cooktop documents still need to be reviewed together for compatibility, separation and connection access. Draw any shelf or drawer proposed between or below the equipment. This avoids treating brand matching as proof that every wall oven can be installed in the same cabinet arrangement.

Use the touch-control and glass care instructions

Follow the exact guide for Control Lock, pan detection and routine cleaning. A pan-detection signal provides operating information but does not mean the whole cooking surface is cool. Allow the area to cool appropriately and clean cookware bases before use. Keep utensils and pot handles arranged so the touch-control area stays accessible during ordinary cooking.

Review the power-management setting at setup

The exact model's manufacturer-listed guide offers total-power limits of 4.0, 6.0 or 7.2 kW. Have the installer select the appropriate setup using the complete electrical instructions and the home supply. The guide says a selected limit can restrict some zone power levels and functions to avoid exceeding it. That makes the configured limit relevant when comparing several simultaneous pans or Booster use.

Do not change the installation plan from these figures alone; the existing circuit reference and complete wiring instructions still need review.

Is the whole surface stainless steel?

Whirlpool identifies the finish as Stainless Steel Trim. The cooking area is the induction glass surface. Use the complete model and finish when matching the surrounding kitchen.

Do the assisted modes work with every induction pot?

Whirlpool specifies pot W11463464 for Assisted Boil and pan W11463466 for Assisted Pan Frying, sold separately. Check those requirements independently from ordinary induction cookware compatibility.

Can it be installed flush?

Whirlpool describes optional flush installation. Use the exact drawing and approved arrangement before modifying the countertop.

Does it have four cooking elements?

The exact retailer record identifies four elements. Compare their arrangement with the pans you use simultaneously and use the manufacturer guide for placement and operation.
